Change Detection

Overview

This chapter explores how you can use integration systems and their components to capture and output changes to Workday data.

Objectives

By the end of this chapter, you will be able to:

Examine the change detection process.

Configure the transaction log service to manage change detection.

Predict the output results of an integration event.

Schedule an integration system with dynamic launch parameters for change detection.

Full-Diff Extract

Instead of retrieving a full file (using the Full Extract or Full File launch parameter), you can retrieve only new or changed data since the last successful integration run, called a Full-Diff extract.

A Full-Diff extract identifies all instances that meet the eligibility criteria and then determines if data related to these instances changed. If it has, the integration includes all data for that instance.

Launch Effective and Entry Dates

Configure change detection using the date- and time-related launch parameters, which you can set in the past, present, or future.

Launch Parameter	Description	Example Value for Change Detection
As Of Entry Moment	The moment date and time that the integration considers current. The integration will not include changes that occur after that moment.	Current moment
Effective Date	The end date of the date range the integration considers.	Current date
Last Successful As-Of Entry Moment	The last moment that the integration believes it successfully ran. While it defaults to the actual moment it last successfully ran, you can change it.	Current moment minus 48 hours
Last Successful Effective Date	The beginning date of the date range the integration considers.	Current date minus 48 hours

You can either enter static dates, like the examples above, or dynamic fields, which will calculate new values every time the integration runs based on current information.

Both Full-File and Full-Diff use date launch parameters.

Full File:
Extracts all instances that exist at the As Of Entry Moment and Effective Date, regardless of whether they changed.

Full-Diff:
Extracts all instances with one or more changed output fields between the current moment (As Of Entry Moment and Effective Date) and the last successful run (Last Successful As Of Entry Moment and Last Successful Effective Date).

Integration Audit Files

Every time an integration runs, Workday generates the following files, located in the Output Files tab of the event:

File	Description
Data Changes Audit	Includes field-level changes for all instances that had changes. Not generated for Full Extract integration events.
Diagnostic Audit	Includes details on all instances the integration event processed for the output file.
XSD File	Defines the schema, or content and structure, of the integration event.
Messages Audit	Contains all web service requests and responses. For DIS connectors, it organizes data into manageable groups.

Transaction Log

Some connectors use a transaction log integration service that provides a record of the Workday events you choose, usually data changes relevant to an external system.

Example
: If your integration system connects to an external endpoint that orders business cards for new employees, you can include all new hire events in the transaction log.

First, enable the transaction log service in the

Configure Integration Services

task. Then, from the integration system's Related Actions, select Integration System > Configure Integration Transaction Log.

Configure a transaction log based on one of the following criteria.

Option	Description
Subscribe to all Business Processes	All events associated with any business process type
Subscribe to all Business Process Types except	All events associated with a business process type, except the selected types
Subscribe to all Transaction Types	All events in Workday, not just those associated with a business process
Subscribe to all Transaction Types except	All events in Workday, except the selected types
Subscribe to specific Transaction Types	All events in Workday associated with selected types

Important
: To improve integration performance, exclude business process and transaction types that you do not need. However, if in doubt about a transaction type, include it. Only the changes subscribed to are available to include in the integration output.

Transaction Log Limitations

The transaction log can only pick up direct changes. A few examples of indirect changes, which an integration will not detect, include:

Changes to the classification of a job

Changes to the manager assignable role

The integration does not detect the changes because they are directly associated with an object rather than a worker. They have a downstream impact to a worker. To detect indirect changes, disable the transaction log service and use a Full-Diff extract.

Change Detection Nuances

The effective date for some transactions does not occur on an effective date you choose. The table below outlines these exceptions.

Nuance	Transaction Types	Example
Some transactions are automatically effective the moment you submit the change, even if there is a date to select when entering the change.	Includes: Personal Information Change Marital Status Change On the worker history, the transaction will display as completed but the effective date will be blank.	If you change a worker's marital status, it is effective immediately regardless of the Marital Status Change date.
Some transaction types are effective the day after the effective date (effective date + 1).	Includes: Termination End International Assignment	If the integration subscribes to termination event, a worker with a termination effective date of today will not appear in the output until tomorrow.

Note
: The Return From Leave event uses the last day of leave as the effective date, not the first day back to work.

Change Detection Process

At a high level, Workday uses a four-step process to detect and report changes:

Did the transaction log, if enabled, detect a change of the configured types?

Does the worker meet the eligibility requirements?

Was the change either newly entered or newly effective, based on the specified launch dates?

Was the change made to an included field?

Launch Date Conditions

Generally, change detection looks for data that is either newly entered or newly effective.

Newly effective:
Data with an effective date in the specified range, entered in Workday on or before the current date.

Newly entered:
Data entered in Workday during the specified range with an effective date on or before the current date.

Important
: The furthest past date for effective or entered data is January 1, 1970. This is the start date for Unix time measurements, which Workday uses.

Change Detection Process

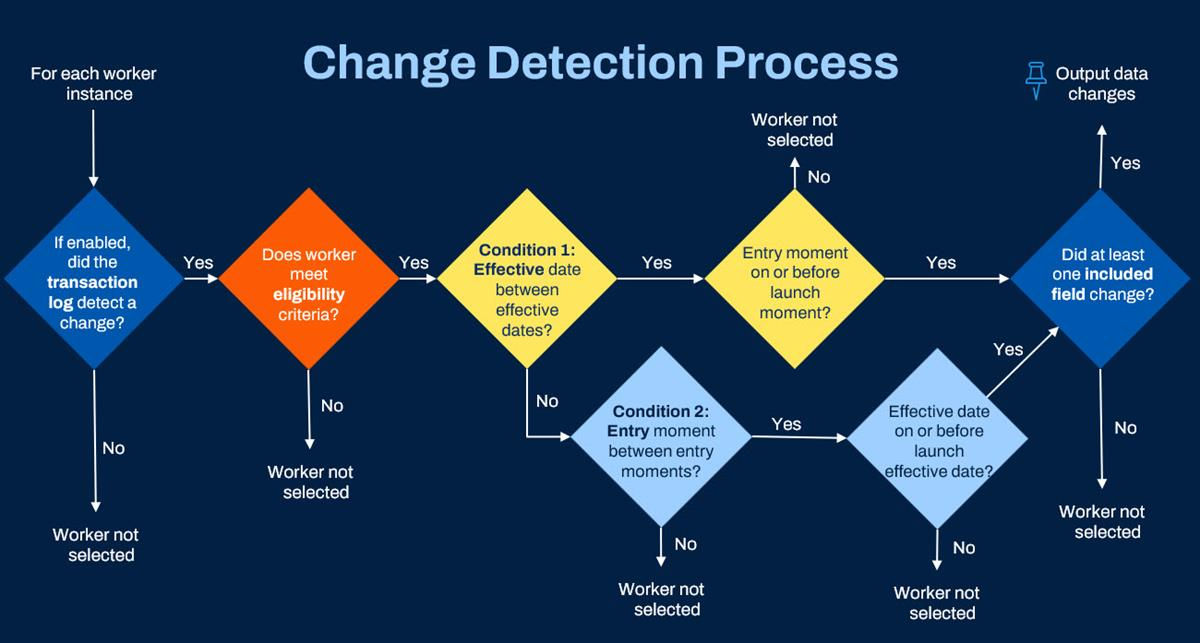

The diagram below shows how the two launch date conditions fit into the entire Workday change detection process.

Change detection process.

Stack Processing

Connectors process data in two ways: top of stack and effective stack processing.

Term	Description	Examples
Top of Stack	If the same field changes multiple times in the specified period, the integration recognizes only the starting and ending values, not any in between.	If an email address changes once, then changes back to its original value within the specified period, the integration will not return the change. The starting and ending values are identical. If an email address changes once, then another time in the specified period, the integration will only return the second value. If you included prior values in your output, only the original email address, not the first change, will return.
Effective Stack	If the same field changes multiple times in the specified period, the integration recognizes all values, including changes on a single day.	If an email address changes once, then changes back to its original value within the specified period, the integration returns both values. If an email address changes once, then another time in the specified period, the integration returns both values.

Schedule an Integration with Change Detection

To schedule an integration with change detection, run the Launch / Schedule Integration
task and select a run frequency such as daily, weekly, or monthly. For the launch parameters, use the Determine Value at Runtime value type and select the following fields.

Field Name	Field
As of Entry Moment	Current Moment (DateTime)
Effective Date	Current Effective Date
Last Successful as of Entry Moment	As of Entry DateTime of Last Completed Integration Event
Last Successful Effective Date	As of Effective Date of Last Completed Integration Event

Important
: Note that a manual run can interrupt an integration schedule. When a scheduled integration event runs, it uses the last successful entry moment and effective date. These values will pull from the last run of the system, regardless of whether it was a manual run or a scheduled run.
